Designed for the demanding requirements of public safety and elite military forces, the compact, rugged Thermo Scientific™ Gemini™ analyzer allows operators to execute their mission quickly, safely and accurately.
This analyzer from Thermo Fisher represents the industry standard in handheld chemical analyzers due to its versatility, ease of use and robustness.
Scan formats
Gemini provides two formats for scanning: ID mode and screener mode. ID mode is perfect for chemical identification by advanced operators, whereas screener mode offers a simpler interface aimed at low-concentration narcotics detection.
![Gemini analyzer: Integrated Raman and FTIR for chemical ID](https://d2jx2rerrg6sh3.cloudfront.net/images/appnotes/ImageForAppNote_5005_17137876384883886.png)
Image Credit: Thermo Fisher Scientific – Portable and Handheld Raman Spectroscopy
![Gemini analyzer: Integrated Raman and FTIR for chemical ID](https://d2jx2rerrg6sh3.cloudfront.net/images/appnotes/ImageForAppNote_5005_17137876471741005.png)
Image Credit: Thermo Fisher Scientific – Portable and Handheld Raman Spectroscopy
Intuitive operation
Minimal training is required for proficiency, thanks to Gemini’s graphical interface. For first-time users, the Scan Assist feature guides technology selection with a series of easy questions.
The consistent workflow and interface across technologies ensures that experienced operators can proceed with sampling quickly.
Scan delay
As well as the adjustable laser power, Raman scan delay and other integrated safety features, Gemini introduces an FTIR scan delay (enabled by the motorized anvil), an industry first.
![Gemini analyzer: Integrated Raman and FTIR for chemical ID](https://d2jx2rerrg6sh3.cloudfront.net/images/appnotes/ImageForAppNote_5005_17137876550129251.png)
Image Credit: Thermo Fisher Scientific – Portable and Handheld Raman Spectroscopy
![Gemini analyzer: Integrated Raman and FTIR for chemical ID](https://d2jx2rerrg6sh3.cloudfront.net/images/appnotes/ImageForAppNote_5005_1713787662668501.png)
Image Credit: Thermo Fisher Scientific – Portable and Handheld Raman Spectroscopy
Flexible input
Feature navigation is simple, and operators have the option of a tactile keypad or resistive touch screen, even when wearing protective gloves.
![Gemini analyzer: Integrated Raman and FTIR for chemical ID](https://d2jx2rerrg6sh3.cloudfront.net/images/appnotes/ImageForAppNote_5005_17137876684991549.png)
Image Credit: Thermo Fisher Scientific – Portable and Handheld Raman Spectroscopy
3 technologies in 1
![Gemini analyzer: Integrated Raman and FTIR for chemical ID](https://d2jx2rerrg6sh3.cloudfront.net/images/appnotes/ImageForAppNote_5005_17137876785893736.png)
Image Credit: Thermo Fisher Scientific – Portable and Handheld Raman Spectroscopy
Complementary and confirmatory
By integrating the highly specific and reliable Raman and FTIR identification methods into a single analyzer, the limitations of the individual techniques are largely negated, and a broader range of chemical identification is enabled.
![Gemini Analyzer: Integrated Raman and FTIR for chemical ID](https://d2jx2rerrg6sh3.cloudfront.net/images/appnotes/ImageForAppNote_5005_17137620667589285.png)
Image Credit: Thermo Fisher Scientific – Portable and Handheld Raman Spectroscopy
Surface Enhanced Raman Spectroscopy (SERS)
The combined effect of the enhanced hardware and software and the SERS capability of the analyzer enables Gemini to deliver low-concentration analysis and results for key narcotics.
Identifying low concentration narcotics. Source: Thermo Fisher Scientific – Portable and Handheld Raman Spectroscopy
Drug |
Drug Weight (%) |
Cutting Agent |
Gemini with LowDoseID |
Fentanyl HCl |
5 |
Acetaminophen |
✓ |
1 |
Caffeine |
✓ |
1 |
Confectioners’ sugar |
✓ |
1 |
α-Lactose monohydrate |
✓ |
5 |
Procaine HCl |
✓ |
5 |
Quinine HCl |
✓ |
Heroin HCl |
5 |
Acetaminophen |
✓ |
2 |
Caffeine |
✓ |
5 |
α-Lactose monohydrate |
✓ |
Exceptional durability

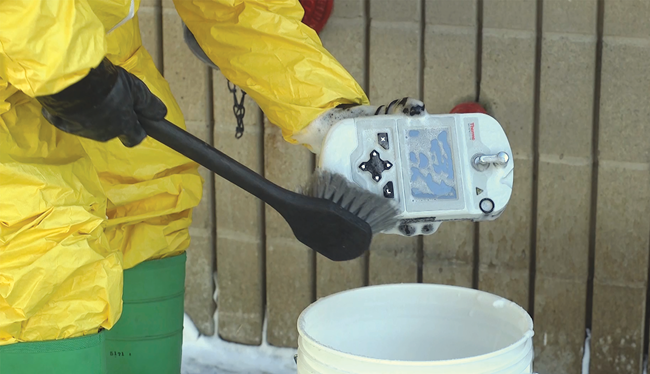

It is necessary for a military-grade analyzer to be resistant to conditions such as extreme climates and aggressive handling. These conditions are met by Gemini, which is certified to the latest military standards for ruggedness, including drop, shock, vibration, temperature and immersion.
![Gemini analyzer: Integrated Raman and FTIR for chemical ID](https://d2jx2rerrg6sh3.cloudfront.net/images/appnotes/ImageForAppNote_5005_17137880580685949.png)
Image Credit: Thermo Fisher Scientific – Portable and Handheld Raman Spectroscopy
![Gemini analyzer: Integrated Raman and FTIR for chemical ID](https://d2jx2rerrg6sh3.cloudfront.net/images/appnotes/ImageForAppNote_5005_17137880671319350.png)
Image Credit: Thermo Fisher Scientific – Portable and Handheld Raman Spectroscopy
![Gemini analyzer: Integrated Raman and FTIR for chemical ID](https://d2jx2rerrg6sh3.cloudfront.net/images/appnotes/ImageForAppNote_5005_17137880741307194.png)
Image Credit: Thermo Fisher Scientific – Portable and Handheld Raman Spectroscopy
![Gemini analyzer: Integrated Raman and FTIR for chemical ID](https://d2jx2rerrg6sh3.cloudfront.net/images/appnotes/ImageForAppNote_5005_17137880804812647.png)
Image Credit: Thermo Fisher Scientific – Portable and Handheld Raman Spectroscopy
Scanning modes
![Gemini analyzer: Integrated Raman and FTIR for chemical ID](https://d2jx2rerrg6sh3.cloudfront.net/images/appnotes/ImageForAppNote_5005_17137885247326211.png)
Image Credit: Thermo Fisher Scientific – Portable and Handheld Raman Spectroscopy
ID mode employs Raman and FTIR technology to provide complementary and confirmatory results. This scanning mode is ideal for advanced users and enables the general characterization of chemicals.
![Gemini analyzer: Integrated Raman and FTIR for chemical ID](https://d2jx2rerrg6sh3.cloudfront.net/images/appnotes/ImageForAppNote_5005_17137885332603721.png)
Image Credit: Thermo Fisher Scientific – Portable and Handheld Raman Spectroscopy
Suited to all user levels, the screener mode (available with LowDoseID) utilizes Raman and SERS technology for tasks such as narcotics identification. A direct scan may be employed via holder or probe for analysis of substances that are pure or in high concentration. Alternatively, a type H scan may be used to identify substances present in low concentration or analyze items with fluorescence issues.
![Gemini analyzer: Integrated Raman and FTIR for chemical ID](https://d2jx2rerrg6sh3.cloudfront.net/images/appnotes/ImageForAppNote_5005_17137885426348066.png)
Image Credit: Thermo Fisher Scientific – Portable and Handheld Raman Spectroscopy
Additionally, the HazMasterG3 software can be used to determine potential hazardous material made from onsite chemicals and to determine any missing HME formula ingredients.
![Gemini analyzer: Integrated Raman and FTIR for chemical ID](https://d2jx2rerrg6sh3.cloudfront.net/images/appnotes/ImageForAppNote_5005_17137885504343989.png)
Image Credit: Thermo Fisher Scientific – Portable and Handheld Raman Spectroscopy
Specifications. Source: Thermo Fisher Scientific – Portable and Handheld Raman Spectroscopy
. |
. |
Size |
10.1 in x 5.7 in x 2.4 in (25.6 cm x 14.6 cm x 6.1 cm) |
Weight |
4.2 lbs (1.9 kg) |
Spectral range |
FTIR: 4,000 cm-1 to 650 cm-1 Raman: (785 nm) 250 cm-1 to 2875 cm-1 |
Spectral resolution |
FTIR: 4 cm-1 Raman: 7 to 10.5 cm-1 (FWHM) across range |
Collection optics |
FTIR: ATR diamond crystal, single bounce Raman: Fiber optic probe |
Power supply |
Internal 3.7 V lithium polymer (QTY 1) battery pack Internal CR123A (QTY 3) batteries DC wall adapter, 12 V DC 1.25 A |
SERS |
1.5 ml solvent vial via polycarbonate H-stick with substrate |
Data export |
SPC (for use in standard spectroscopic software), reachback (.rbk), text, or PDF |
Ruggedness |
MIL-STD-810G and IP67 |
Languages |
English, German, Turkish, Spanish, Chinese, Japanese, Arabic, French, Russian |
Add on capability |
Optional HazMasterG3® decision support software (English GUI only); requires Gemini v1.6 or later software.
Low dose ID for low concentration analysis |
Onboard mixture analysis |
Identification of up to 4 components in a mixture |
